Manufacturer: Thermaltake

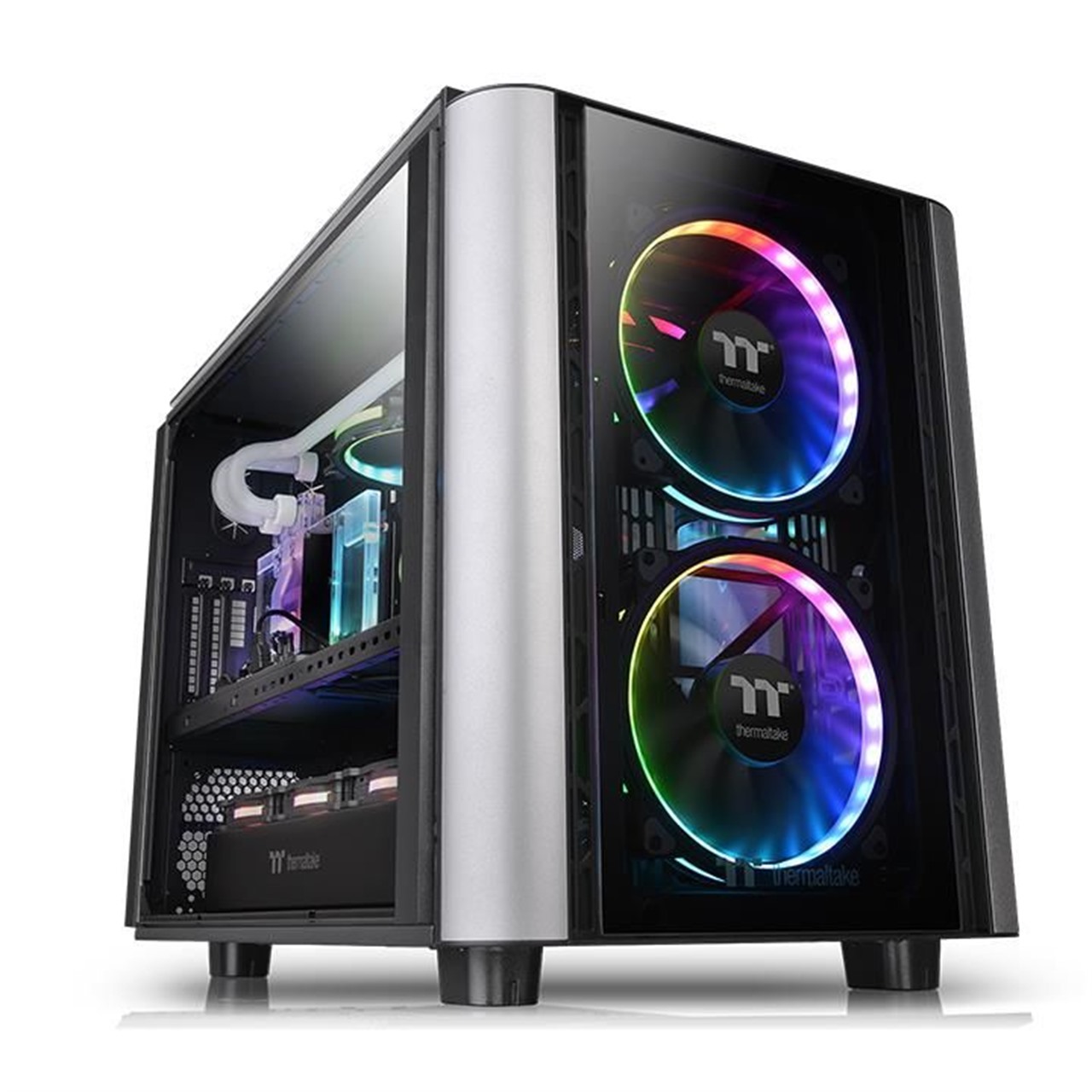

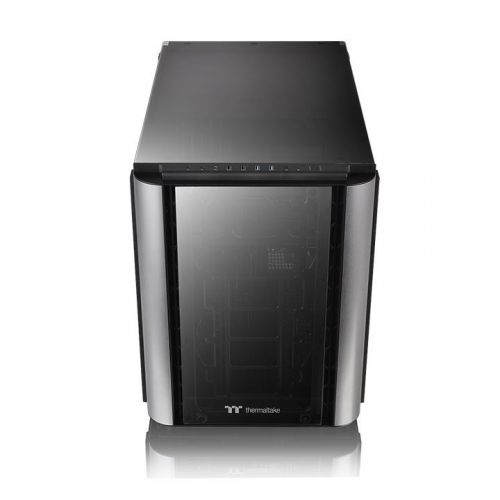

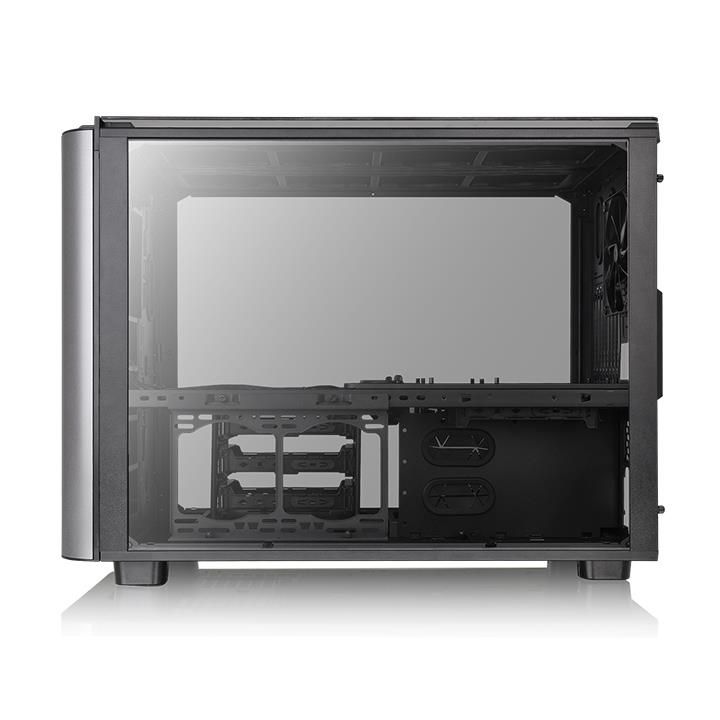

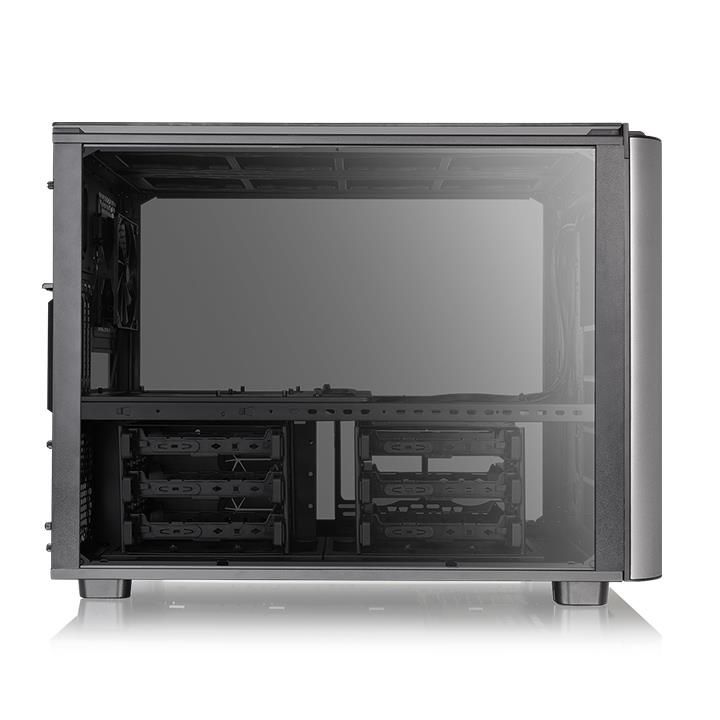

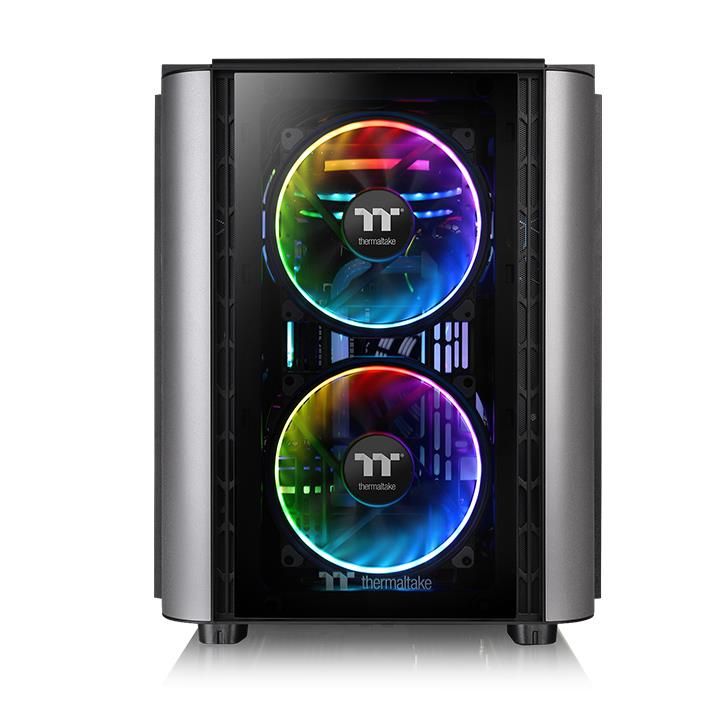

E-ATX cube chassis with four 4mm think tempered glass panels and one preinstalled 140mm rear fan.
3Years Warranty
| P/N | CA-1L1-00F1WN-00 |
|---|---|
| SERIES | Level 20 |
| MODEL | Level 20 XT |
| CASE TYPE | E-ATX Cube Case |
| DIMENSION (H X W X D) | 515 x 394 x 662 mm (20.3 x 15.5 x 26.06 inch) |
| NET WEIGHT | 20.4 kg / 44.97 lb |
| SIDE PANEL | 4mm Tempered Glass x 4(Left & Right & Front & Top) |
| COLOR | Exterior & Interior : Black |
| MATERIAL | SPCC |
| COOLING SYSTEM | Rear (exhaust) : 140 x 140 x 25 mm fan (1000rpm, 16dBA) |
| DRIVE BAYS -ACCESSIBLE -HIDDEN | 6 x 3.5’’ or 2.5’’ (HDD Cage) 1 x 3.5’’, 2 x 2.5’’ (M/B Tray) |
| EXPANSION SLOTS | 8 |
| MOTHERBOARDS | 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX), 12” x 13” (Extend ATX) |
| I/O PORT | USB 2.0 x2, USB 3.0 x2, HD Audio x 1, Type-C x1 |
| PSU | Standard PS2 PSU (optional) |
| FAN SUPPORT | Front: 3 x 120mm, 2 x 140mm, 2 x 200mm Top: 8 x 120mm, 6 x 140mm, 2 x 200mm Rear: 2 x 120mm or 2 x 140mm Bottom: 3 x 120mm Left / Right Side: 4 x 120mm, 3 x 140mm |
| RADIATOR SUPPORT | Front: 1 x 120mm or 1 x 240mm or 1 x 360mm 1 x 140mm or 1 x 280mm Top: 2 x 120mm or 2 x 240mm or 2 x 360mm or 2 x 480mm 2 x 140mm or 2 x 280mm or 2 x 420mm Rear: 1 x 120mm or or 1 x 140mm Left / Right Side: 1 x 120mm or 1 x 240mm or 1 x 360mm or 1 x 480mm 1 x 140mm or 1 x 280mm or 1 x 420mm Bottom: 1 x 120mm or 1 x 240mm or 1 x 360mm or 1 x 480mm 1 x 140mm or 1 x 280mm or 1 x 420mm |
| CLEARANCE | CPU cooler height limitation: 250mm VGA length limitation: 400mm(with ODD cage) 590mm(without ODD cage) PSU length limitation: 220mm (With Bottom Fan) |
