Prices and specification and stock availability are subjected to change without prior notice please Contact Us to confirm. Thank you for choosing Gaming Store.
Stock Status: In Stock
Manufacturer: Thermaltake

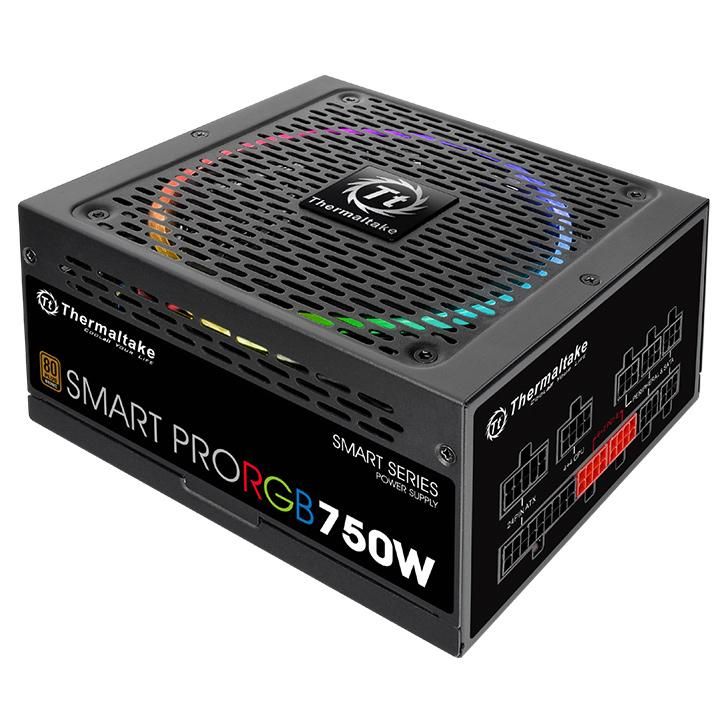

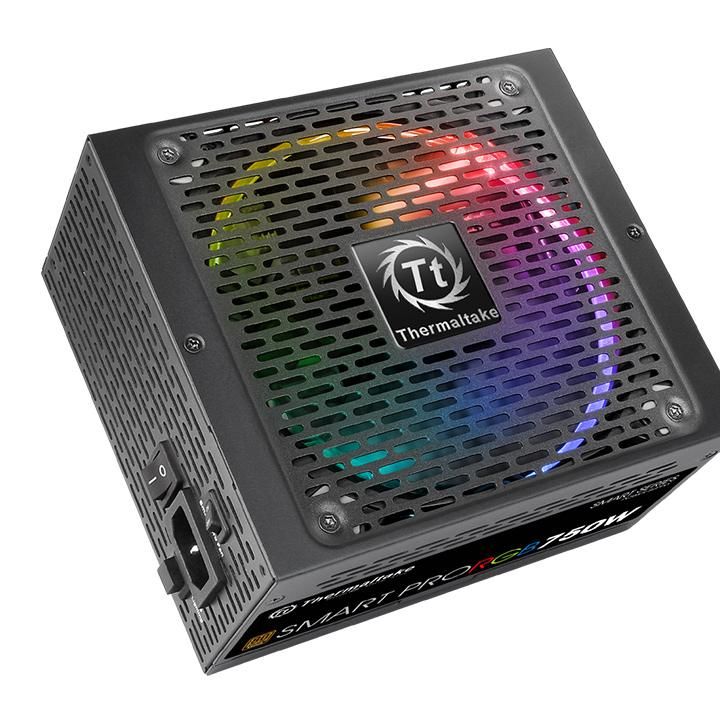

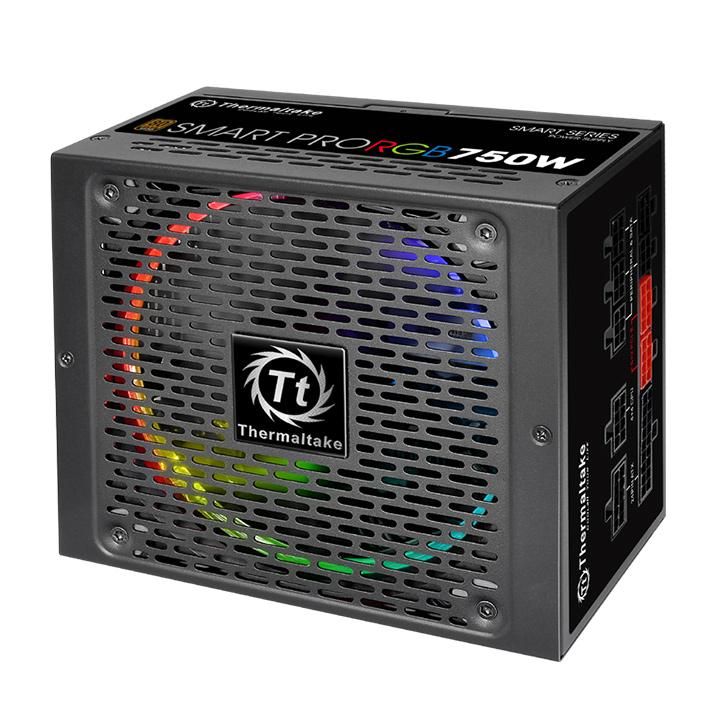

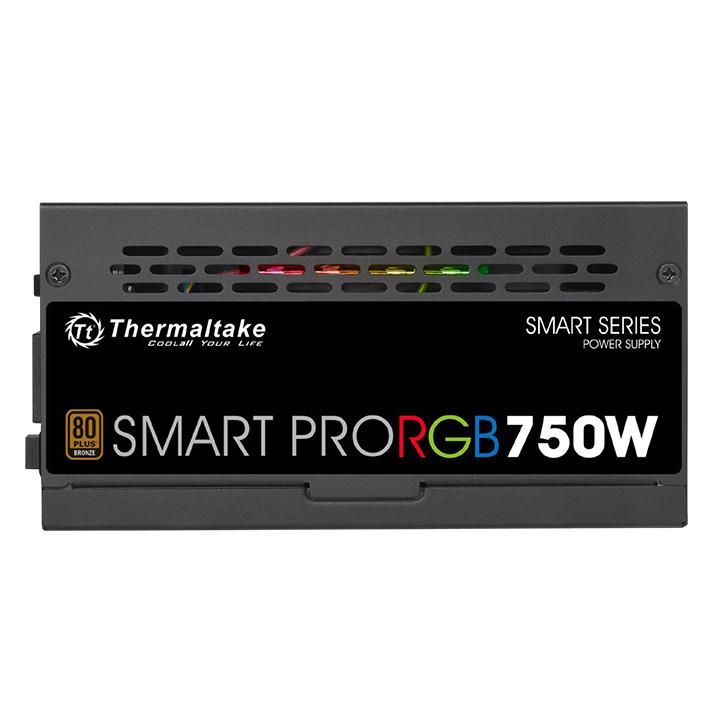

Smart Series SPR-0750F-R–750W 80 PLUS® Bronze Certified Fully Modular APFC PSU
5Years Warranty
| P/N | PS-SPR-0750FPCBxx-R |
|---|---|
| WATTS | 750W |
| RGB FAN | Yes |
| FORM FACTOR | ATX |
| MODEL | SPR-750AH3FSB-R |
| TYPE | ATX 12V v2.4 and EPS v2.92 |
| MAX. OUTPUT CAPACITY | 750W |
| PEAK OUTPUT CAPACITY | 900W |
| COLOR | Black |
| DIMENSION ( W / H / D ) | 150mm(W) x 86mm(H) x 170mm(D) |
| PFC (POWER FACTOR CORRECTION) | Active PFC |
| POWER GOOD SIGNAL | 100-500 msec |
| HOLD UP TIME | > 16msec at 75% load |
| INPUT CURRENT | 12A |
| INPUT FREQUENCY RANGE | 50Hz - 60Hz |
| INPUT VOLTAGE | 100V – 240V~ |
| OPERATING TEMPERATURE | 0°C to + 40°C |
| OPERATING HUMIDITY | 20% to 90%,non-condensing |
| STORAGE TEMPERATURE | -40°C to + 70°C |
| STORAGE HUMIDITY | 20% to 95%, non-condensing |
| COOLING SYSTEM | 14cm hydraulic bearing fan |
| EFFICIENCY | Meet 80 PLUS® Bronze at 115Vac input. |
| MTBF | 100,000 hrs minimum |
| SAFETY APPROVAL | CE/cTUVus/TÜV SÜD/FCC/CCC/BSMI/EAC |
| PROTECTION | OCP, OVP, UVP, OPP, SCP, OTP |
| CONNECTOR | PCI-E 6+2pin X 4 |
