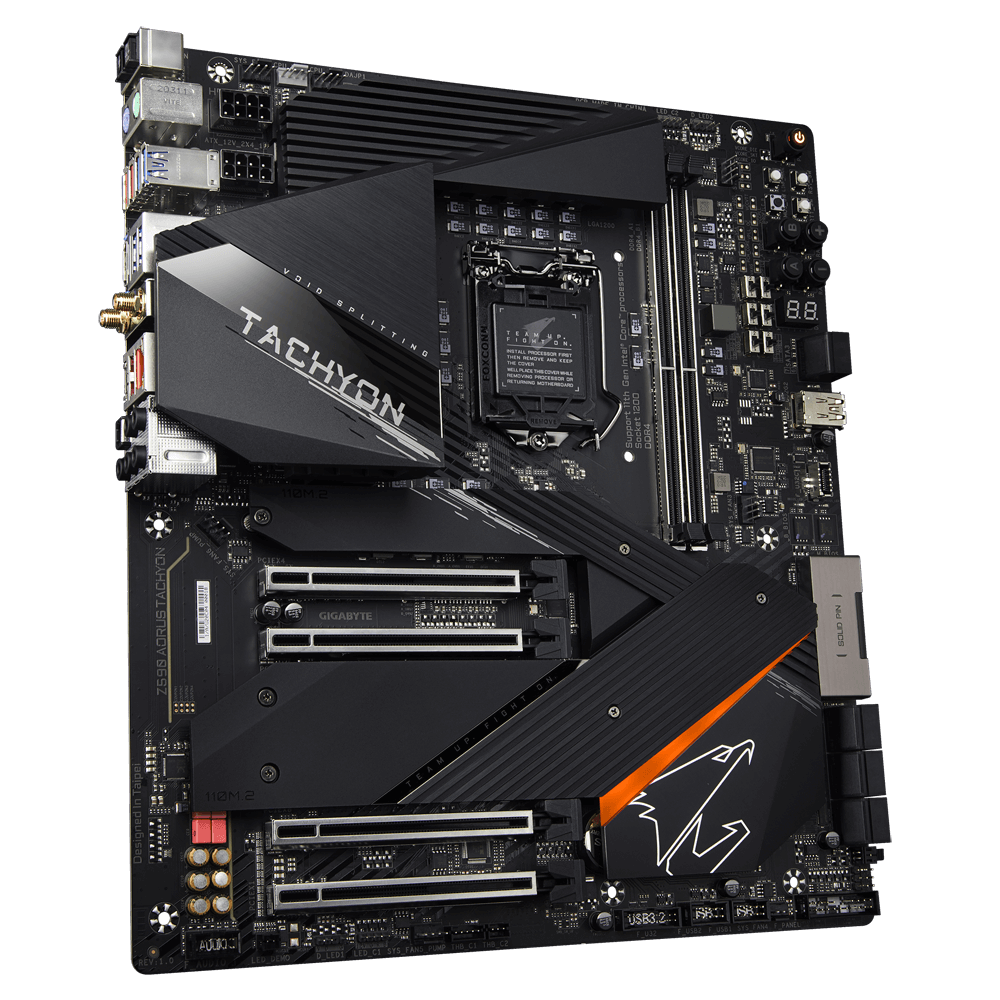

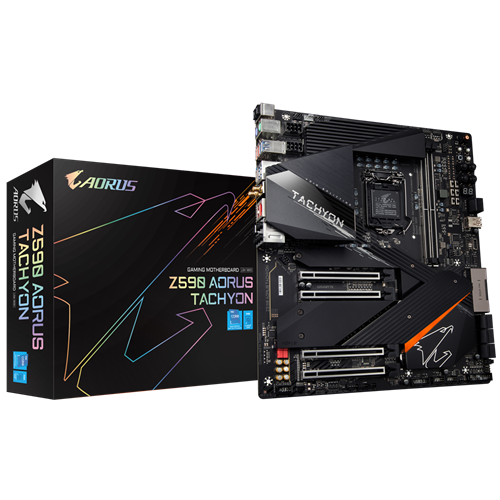

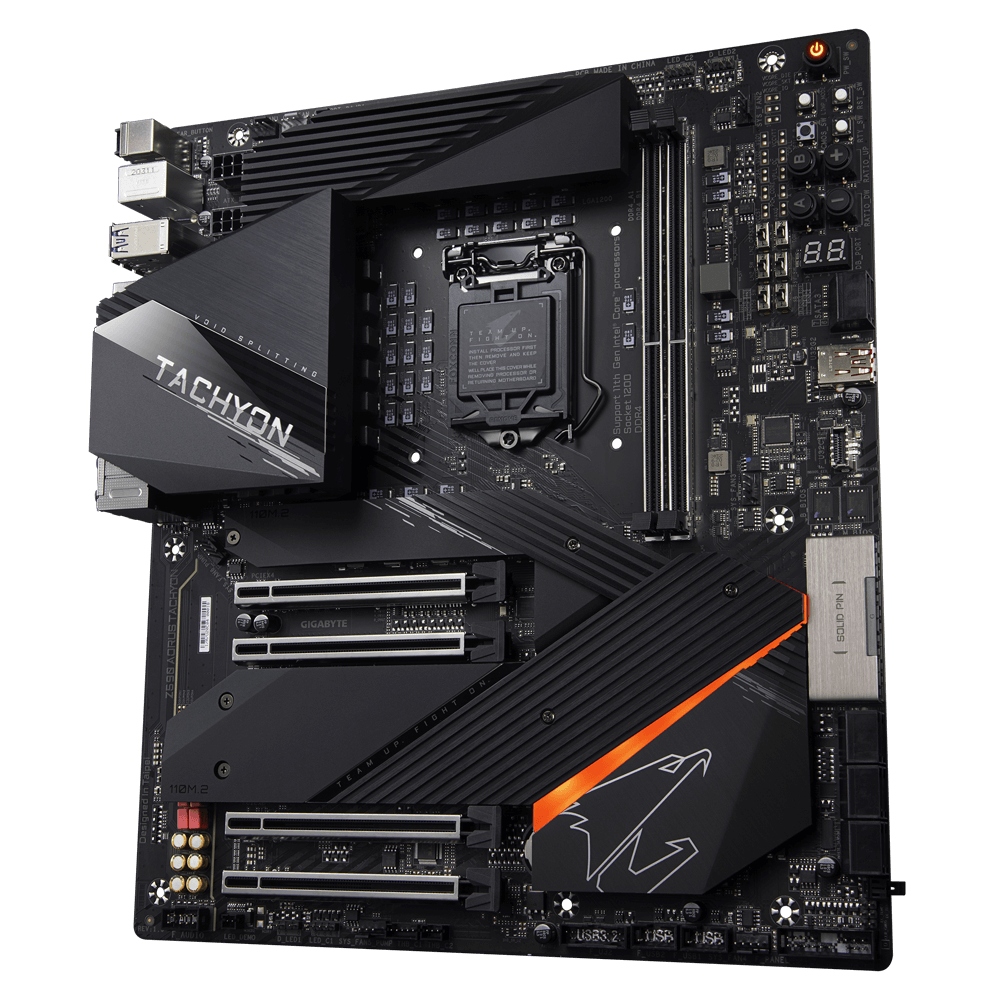

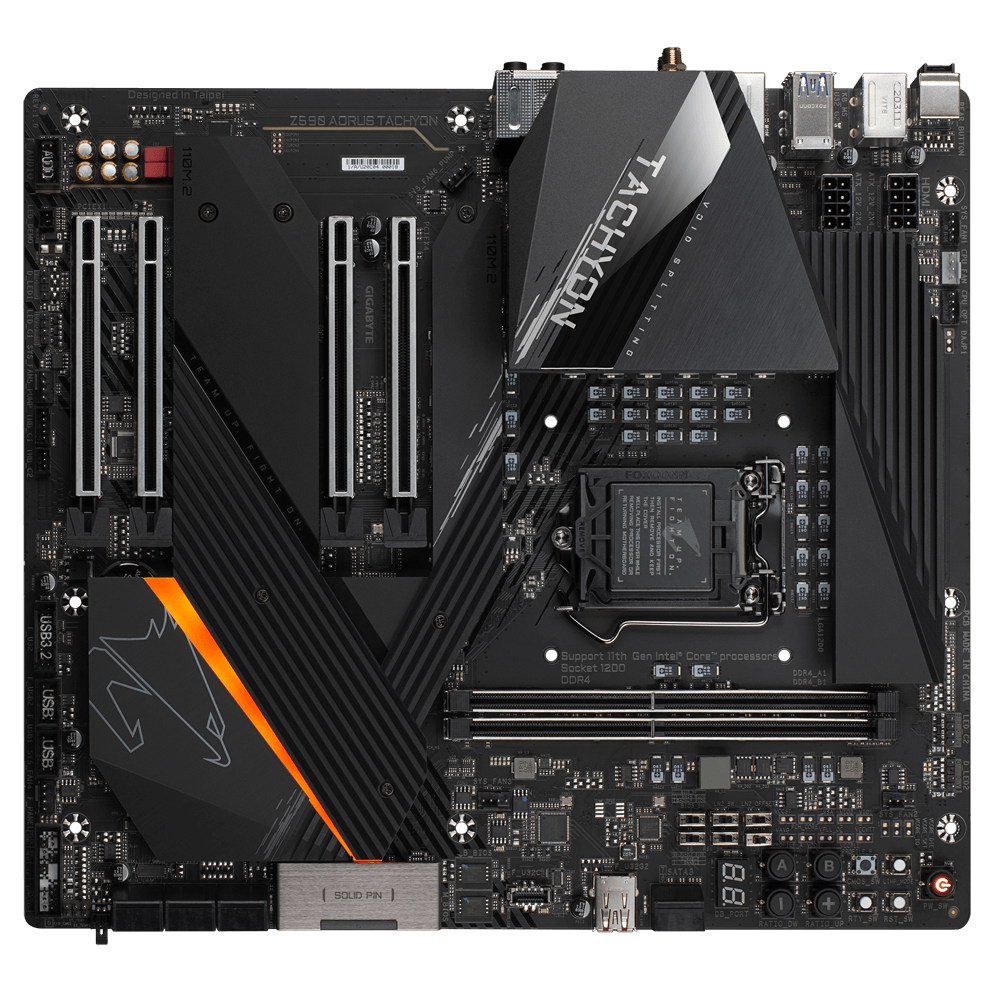

Z590 AORUS TACHYON (rev. 1.0)

$320 ~~$525~~

Stock Status: In Stock

Manufacturer: GIGABYTE

Z590 AORUS TACHYON is the pinnacle of overclocking motherboard completely designed by and for overclockers, who are continuously seeking to break unimaginable performance limit. Its specialized VRM design, memory layout trace and built-in overclocking buttons and switches enable overclocking enthusiasts to unleash full potential of latest generation Intel Core processor.

CPU OC: 7314 MHz

Memory OC: 6870 MHz

Description

CPU
LGA1200 package:
1. 11th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors
2. 10th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors / Intel® Core™ i3 processors/ Intel® Pentium® processors / Intel® Celeron® processors*
  * Limited to processors with 4 MB Intel® Smart Cache, Intel® Celeron® G5xx5 family.
3. L3 cache varies with CPU
(Please refer to "CPU Support List" for more information.)
Chipset
1. Intel® Z590 Express Chipset
Memory
1. 11th Generation Intel® Core™ i9/i7/i5 processors:
  Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules
2. 10th Generation Intel® Core™ i9/i7 processors:
  Support for DDR4 2933/2666/2400/2133 MHz memory modules
3. 10th Generation Intel® Core™ i5/i3/Pentium®/Celeron® processors:
  Support for DDR4 2666/2400/2133 MHz memory modules
4. 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
5. Dual channel memory architecture
6. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
7. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
8. Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)
Onboard Graphics
Integrated Graphics Processor-Intel® HD Graphics support:
1. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
  * Support for HDMI 2.0 version and HDCP 2.3.
(Graphics specifications may vary depending on CPU support.)
Audio
1. Realtek® ALC1220-VB codec
  * The back panel line out jack supports DSD audio.
2. Support for DTS:X® Ultra
3. High Definition Audio
4. 2/4/5.1/7.1-channel
5. Support for S/PDIF Out
LAN
1. Intel® 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)
Wireless Communication module
Intel® Wi-Fi 6E AX210
1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
2. BLUETOOTH 5.2
3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
  * Actual data rate may vary depending on environment and equipment.
Expansion Slots
1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
  * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
2. 1 x PCI Express x16 slot, running at x8 (PCIEX8)
  * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.
  (The PCIEX16 and PCIEX8 slots conform to PCI Express 4.0 standard.)*
  * Supported by 11th Generation processors only.
3. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
4. 1 x PCI Express x16 slot, running at x1 (PCIEX1)
  (The PCIEX4 and PCIEX1 slots conform to PCI Express 3.0 standard.)
Multi-Graphics Technology
1. Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
Storage Interface
CPU:
1. 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)*
  * Supported by 11th Generation processors only.
Chipset:
1. 2 x M.2 connectors (Socket 3, M key, type 2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2P_SB)(M2M_SB)
2. 6 x SATA 6Gb/s connectors (SATA3 0~5)
  * Refer to "1-9 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
Support for RAID 0, RAID 1, RAID 5, and RAID 10
Intel® Optane™ Memory Ready

ASMedia® ASM1061 chip:
1. 2 x SATA 6Gb/s connectors (SATA3 6,7), supporting IDE/AHCI mode only
USB
Chipset:
1. 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support
2. 3 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
3. 2 x USB 3.2 Gen 1 ports available through the internal USB header
4. 4 x USB 2.0/1.1 ports available through the internal USB headers
ASMedia® USB 3.2 Gen 2 controller:
1. 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header
2. 1 x USB 3.2 Gen 2 Type-A port (red) onboard
Chipset+Realtek® USB 3.2 Gen 1 Hub:
1. 4 x USB 3.2 Gen 1 ports on the back panel
Internal I/O Connectors
1. 1 x 24-pin ATX main power connector
2. 2 x 8-pin ATX 12V power connectors
3. 1 x CPU fan header
4. 1 x water cooling CPU fan header
5. 4 x system fan headers
6. 2 x system fan/water cooling pump headers
7. 2 x addressable LED strip headers
8. 2 x RGB LED strip headers
9. 3 x M.2 Socket 3 connectors
10. 8 x SATA 6Gb/s connectors
11. 1 x front panel header
12. 1 x front panel audio header
13. 1 x USB Type-C® header, with USB 3.2 Gen 2 support
14. 1 x USB 3.2 Gen 2 Type-A port (red)
15. 1 x USB 3.2 Gen 1 header
16. 2 x USB 2.0/1.1 headers
17. 1 x noise detection header
18. 2 x Thunderbolt™ add-in card connectors
19. 1 x Clear CMOS jumper
20. 1 x power button (PW_SW)
21. 1 x reset button (RST_SW)
22. 1 x Clear CMOS button (CMOS_SW)
23. 2 x BIOS switches (BIOS_SW)(SB)
24. 1 x Cold Reset button (RTY_SW)
25. 1 x Protection Mode button (LIMP_MODE)
26. 1 x CPU Ratio up button (RATIO_UP)
27. 1 x CPU Ratio down button (RATIO_DW)
28. 1 x Profile A button (PROFILE_A)
29. 1 x Profile B button (PROFILE_B)
30. 1 x OC Trigger switch (TGR)
31. 1 x LN2 Mode switch (LN2_SW)
32. 1 x Enhanced LN2 Mode switch (LN2_OFFSET)
33. 1 x Reserved switch (RSV_SW)
＊All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.

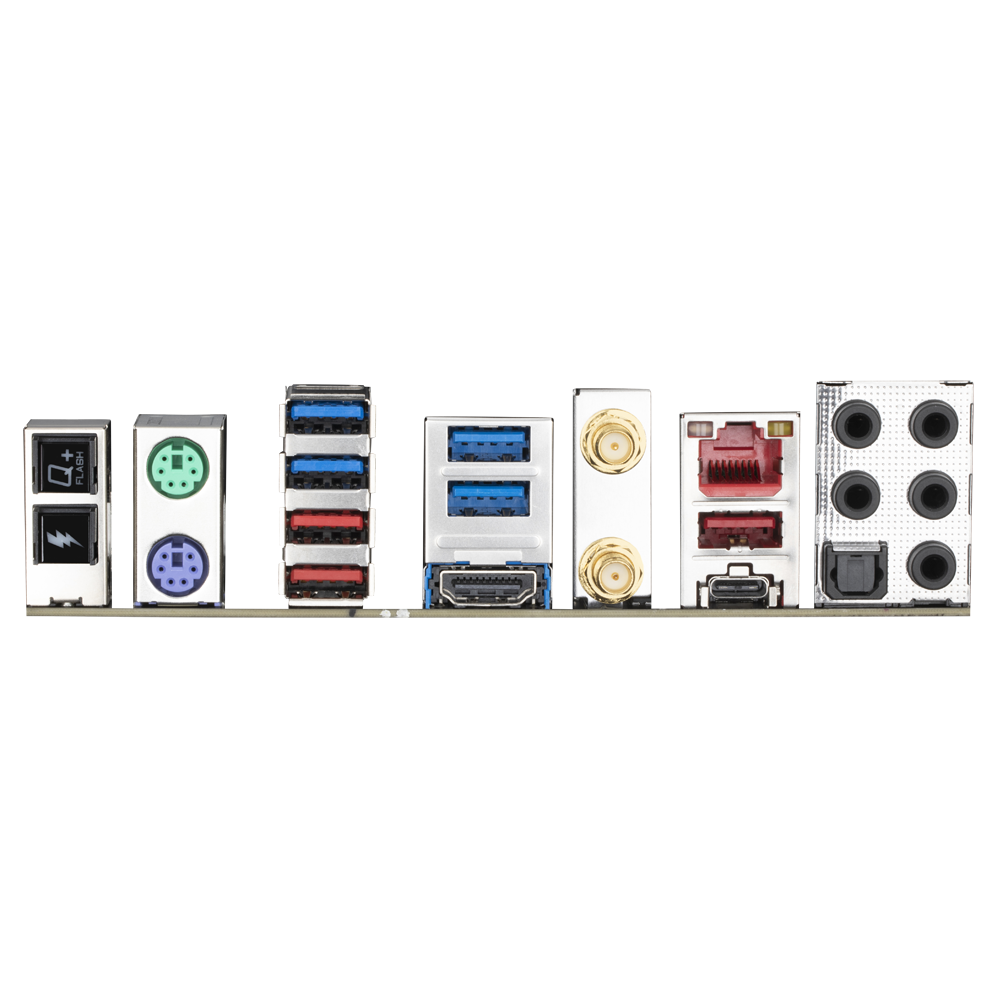

Back Panel Connectors
1. 1 x Q-Flash Plus button
2. 1 x OC Ignition button
3. 1 x PS/2 keyboard port
4. 1 x PS/2 mouse port
5. 2 x SMA antenna connectors (2T2R)
6. 1 x HDMI port
7. 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support
8. 3 x USB 3.2 Gen 2 Type-A ports (red)
9. 4 x USB 3.2 Gen 1 ports
10. 1 x RJ-45 port
11. 1 x optical S/PDIF Out connector
12. 5 x audio jacks
I/O Controller
1. iTE® I/O Controller Chip
H/W Monitoring
1. Voltage detection
2. Temperature detection
3. Fan speed detection
4. Water cooling flow rate detection
5. Fan fail warning
6. Fan speed control
  * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
7. Noise detection
BIOS
1. 2 x 256 Mbit flash
2. Use of licensed AMI UEFI BIOS
3. Support for DualBIOS™
4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
1. Support for APP Center
  * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
  @BIOS
  EasyTune
  Fast Boot
  Game Boost
  RGB Fusion
  Smart Backup
  System Information Viewer
2. Support for Q-Flash Plus
3. Support for Q-Flash
4. Support for Xpress Install
Bundled Software
1. Norton® Internet Security (OEM version)
2. cFosSpeed
Operating System
1. Support for Windows 10 64-bit
Form Factor
1. E-ATX Form Factor; 30.5cm x 27cm

Prices and specification and stock availability are subjected to change without prior notice please Contact Us to confirm. Thank you for choosing Gaming Store.
