Case Specification
Dimensions 463 x 220 x 486 mm (DWH)
Form Factor Mid Tower
Materials Steel + Plastic
Mainboard Support ATX, M-ATX, ITX

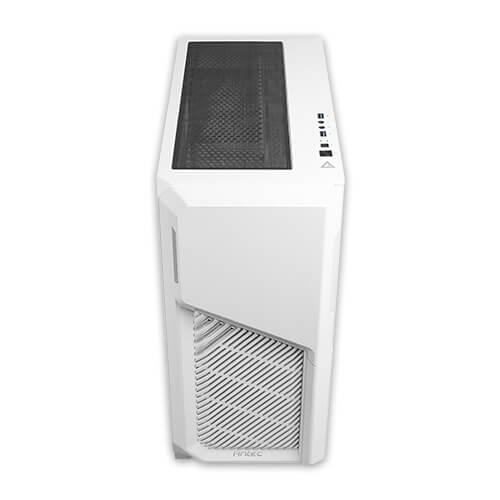

Front Access & Controls Power, LED Control Button, 2 x USB3.0, HD-AUDIO

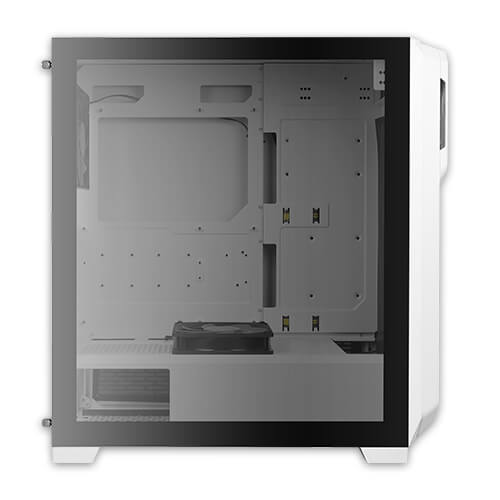

Side Panel 4 mm Tempered Glass Side Panel
Expansion & Drive Bays
Expansion Slots 7
5.25" 1
3.5" /2.5" 3/2
2.5" 3
Fan
Front 3 x 120 mm / 2 x 140 mm
Top 3 x 120 mm / 2 x 140 mm (w/o ODD and w/o ODD bracket)
2 x 120 mm / 2 x 140 mm (w/o ODD but with ODD bracket)
2 x 120 mm / 1 x 140 mm (When ODD is installed)
Power Supply Shroud 2 x 120 mm
Rear 1 x 120 mm
Pre-installed Fans 3 x 120 mm fans in front
1 x 120 mm fan (Reverse Fan) on PSU shroud
& 1 x 120 mm fan in rear
Radiator Support
Front 120/240/280/360 mm (≤ 55 mm thickness when fans are installed outside of front panel)
(≤ 30 mm thickness when fans are installed inside of front panel)
[Max Radiator Length ≤ 405 mm]
Top 240/280/360 mm (w/o ODD and w/o ODD bracket)
240/280 mm (w/o ODD but with ODD bracket)
120 mm(When ODD is installed)
[Max Radiator Length ≤ 405 mm]
Rear 120 mm
Clearance
Max GPU Length ≤ 405 mm
Max CPU Cooler Height ≤ 175 mm
Max PSU Length ≤ 205 mm
Miscellaneous
Dust Filter Front / Top / Bottom / Right Hand Side
Net Weight 7.55KG
Gross Weight 8.7KG
Warranty 2 years
