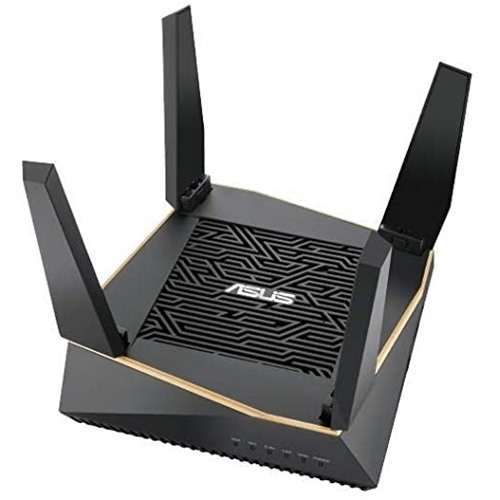

RT-AX92U(2-PK)

IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
WiFi 4 (802.11n)
WiFi 5 (802.11ac)
WiFi 6 (802.11ax)
IPv4
IPv6

AX6100 ultimate AX performance : 400 Mbps+ 867 Mbps+ 4804 Mbps

Yes

WiFi 4 (802.11n) : up to 150 Mbps
WiFi 4 (802.11n) TurboQAM : up to 150 Mbps
WiFi 5 (802.11ac) : up to 433 Mbps

External antenna x 4, Internal antenna X 2

2.4GHz 2x2
5GHz 2x2
5GHz-2 4x4

1.8 GHz dual-core processor

256 MB Flash, 512 MB RAM

OFDMA (Orthogonal Frequency Division Multiple Access)
Beamforming: standard-based and universal
20/40/80/160 MHz bandwidth

2.4G Hz, 5 GHz-1, 5 GHz-2

RJ45 for Gigabits BaseT for WAN x 1, RJ45 for Gigabits BaseT for LAN x 4
USB 2.0 x 1
USB 3.0 x 1

WPS Button, Reset Button, Power Button

Power x 1
Wi-Fi x 3
WAN x 1
LAN x 1

AC Input : 110V~240V(50~60Hz)
DC Output : 19 V with max. 1.75 A current

‧RJ-45 Cable x1
‧Power Adapter x2
‧QSG x1

651

AiMesh : Yes
Primary AiMesh router : Yes
AiMesh node : Yes

ASUS Router APP : Yes

Game Boost/acceleration : Yes
WTFast : Yes

Support Alexa skill : Yes

Support IFTTT : Yes

AiProtection : AiProtection Pro
Router Security Assessment : Yes
Malicious site blocking : Yes
Two-Way IPS : Yes
Infected Device Prevention and Blocking : Yes

Parental Control : Yes
Parental Control Customized Internet schedule : Yes
Maximum Parental Control profile : 16
Maximum Parental Control content filter rule : 16

Adaptive QoS : Yes
Bandwidth Monitor : Yes
Bandwidth limiter : Yes
Maximum Bandwidth limiter rule : 32
Traditional QoS : No
Traffic Monitor : Yes
Real-time traffic monitor : Yes
Wired Traffic Monitor : Yes
Wireless Traffic Monitor : Yes
Traffic Analyzer : Yes
Traffic analysis period : Daily, Weekly, Monthly
Website history : Yes

IPv6 : Yes
MU-MIMO : Yes
Wi-Fi Encryption : WPA3-Personal, WPA2-Personal, WPA-Personal, WPA-Enterprise , WPA2-Enterprise , WPS support
UTF-8 SSID : Yes
Guest Network : Yes
Maximum Guest Network rule : 2.4GHz x3, 5GHz-1 x3,5GHz-2 x3
Guest Network Connection time limit : Yes
Guest Network Encryption : Open system, WPA/WPA2-Personal
WPS : Yes
Wi-Fi MAC address filter : Yes
Maximum MAC filters : 64
Wireless scheduler : Yes
Airtime fairness : Yes
RADIUS Server : Yes
Universal beamforming : Yes
Explicit beamforming : Yes

Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP
Dual WAN : Yes
WAN Aggregation : Yes
3G/4G LTE dongle : Yes
Android tethering : Yes
Port forwarding : Yes
Maximum port forwarding rule : 64
Port triggering : Yes
Maximum port triggering rule : 32
DMZ : Yes
DDNS : Yes
NAT Passthrough : Automatic IP, Static IP, PPPoE(MPPE supported), PPTP, L2TP
Let's Encrypt : Yes

DHCP Server : Yes
IGMP snooping : Yes
IPTV : Yes
LAN Link Aggregation : Yes
Manually assign IP address : Yes
Maximum manually assign IP address rule : 64

VPN Client L2PT : Yes
VPN Client OVPN : Yes
VPN Client PPTP : Yes
VPN Server IPSec : Yes
VPN Server OVPN : Yes
VPN Server PPTP : Yes
VPN Fusion : No

File System : FS_Tuxera_HFS+,FS_Tuxera_NTFS,FS_Tuxera_vFAT,FS_ext2,FS_ext3,FS_ext4
HDD hibernation : Yes
Safely Remove disk : Yes
AiCloud : Yes
Download master : Yes
AiDisk : Yes
Media Server : Yes
Time Machine : Yes
Samba Server : Yes
FTP Server : Yes
Shared Folder privileges : Yes

Operating mode : Accesspoint, AiMeshnode, Mediabridge, Repeater, Router
Operating system : ASUSWRT
Free OS upgrade : Yes
Firewall : Yes
Maximum Firewall keyword filter : 64
Maximum Firewall network service filter : 32
Maximum Firewall URL filter : 64
Wake on LAN (WOL) : Yes
SSH : Yes
Configuration backup and restore : Yes
Diagnosis tools : Yes
Feedback system : Yes
System log : Yes

155 x 155 x 52.6

216 x 118 x 220

0.785

614x234x245

5.513
