Stock Status: In Stock
Manufacturer: NZXT

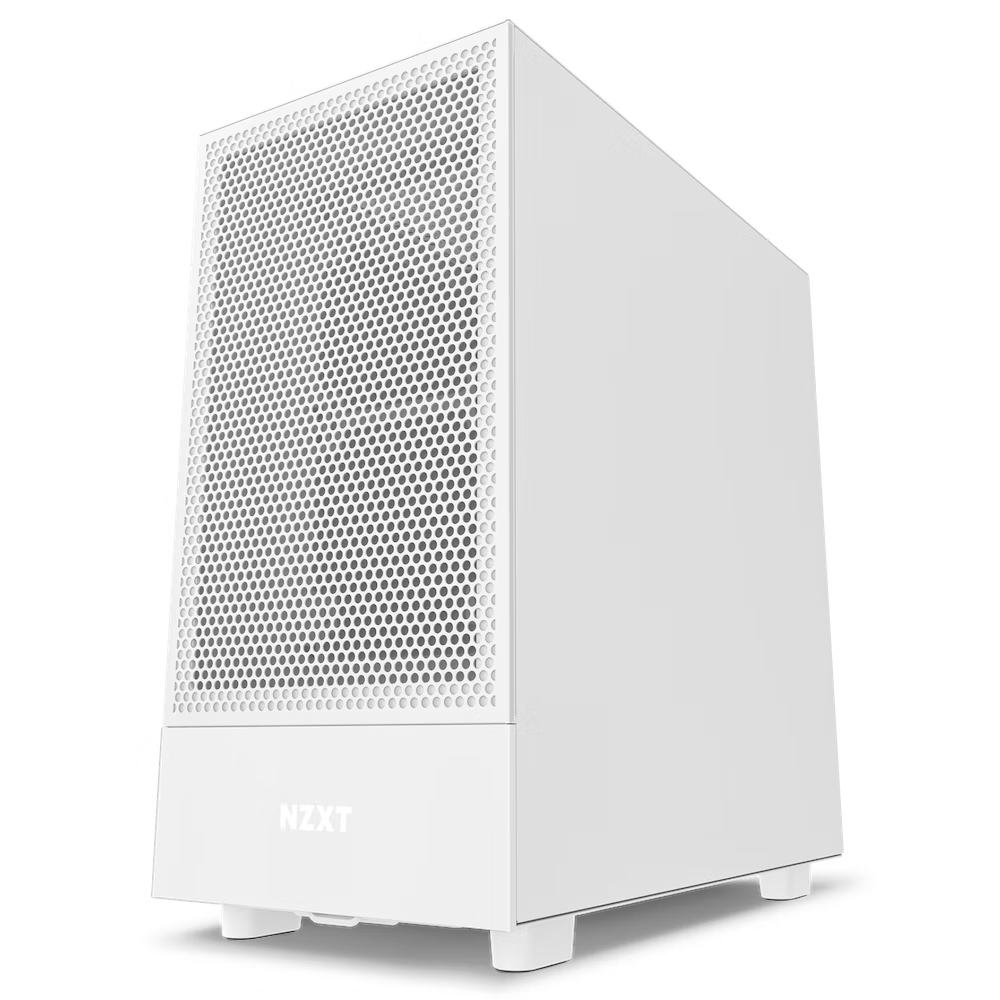

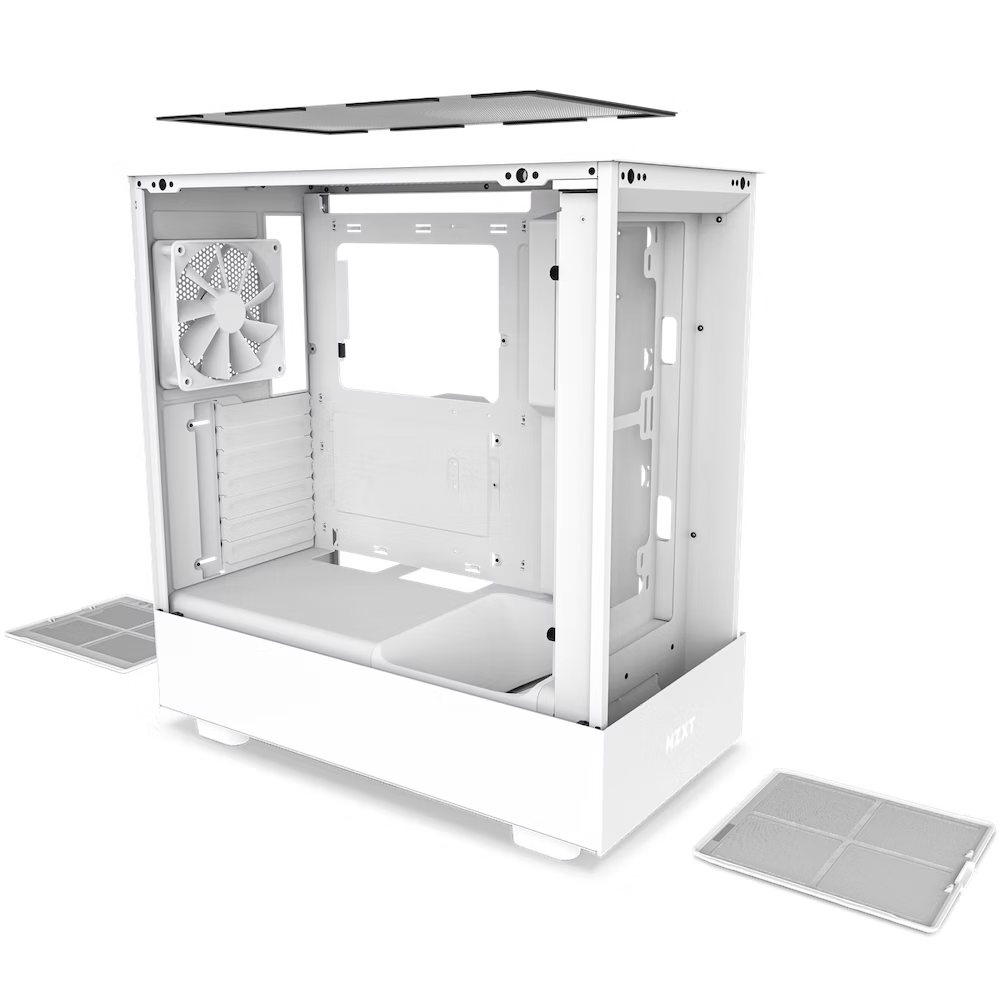

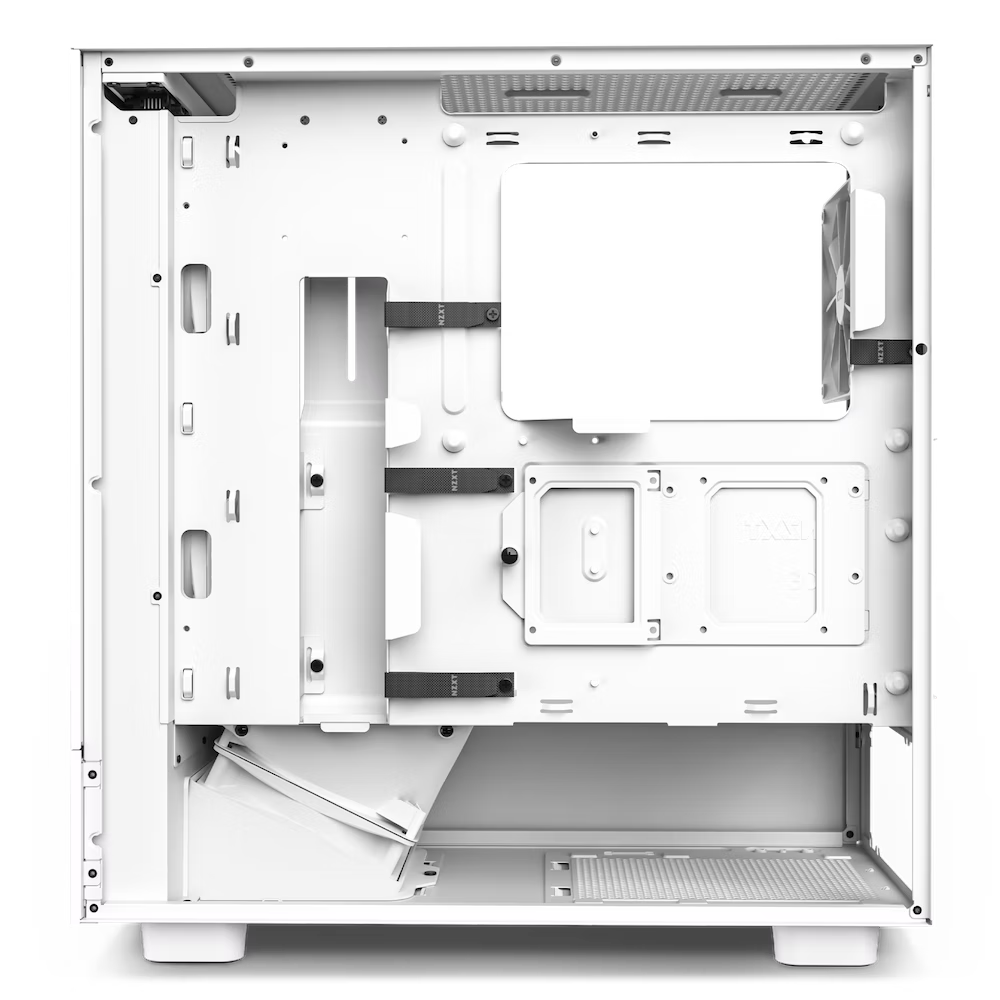

The H5 Flow features a perforated front panel to generate an extra dimension of airflow for maximum cooling potential. With optimized thermal performance and intuitive cable management, the H5 Flow is an ideal chassis for most builds. Dedicated fan on bottom inside panel is angled to cool GPU Perforated front panel provides optimal ventilation Intuitive cable management system with wide channels, hooks, & straps Tool less access to front and side panels Front panel supports up to 2 x 140mm fans or 280mm radiator Top panel supports up to 2 x 120mm fans or 240mm radiator Includes two pre-installed F120Q fans H5 Flow Case1 Front I/O split cables1 Brown box, PE bag, polyform, manual, accessory box & parts (including the screws)1Details
Inside the Box
KEY SPECS
Motherboard Support:Mini-ITX, Micro-ATX, ATX
Enclosure Type:Mid-Tower
Case Material:SGCC Steel, Ultra-clear Tempered Glass, Dark Tinted Tempered Glass (Black only)
DIMENSIONS
Height:464mm (With Feet)
Width:227mm
Depth:446mm
Weight:7.01 kg
COMPATIBILITY & CLEARANCE
Max CPU Cooler Clearance:Up to 165mm
Max GPU Clearance:Up to 365mm
Front Radiator Clearance:45mm
Cable Management:Up to 23mm
FRONT I/O PORTS
USB 3.2 Gen 1 Type-A:1
USB 3.2 Gen 2 Type-C:1
Headset Audio Jack:1
EXPANSION SLOTS
Standard:7
Vertical:0
DRIVE BAYS
2.5":1+1
3.5":1
FAN SUPPORT
Front:2 x 120mm / 2 x 140mm
Top:2 x 120mm
Rear:1 x F Series Quiet 120mm (Case Version) included
Bottom:1 x F Series Quiet 120mm (Case Version) included
RADIATOR SUPPORT
Front:Up to 280mm
Top:Up to 240mm
Rear:Up to 120mm
FAN SPECS
Model:F120Q (Case Version)
Speed:1200 ± 240RPM
Airflow:62.18 CFM
Static:1.05 mm - H2O
Noise:25.1 dBA
Fan Connector:3-pin
GENERAL
Warranty:2 Years
Model Number:CC-H51FW-01 (White)
UPC:810074842426 (White)
EAN:5056547202341 (White)
