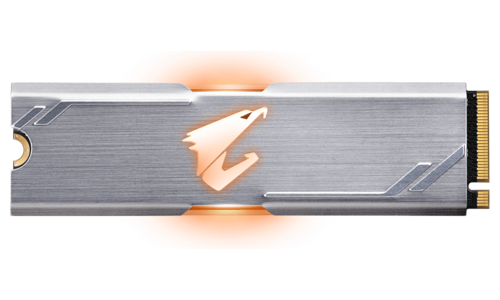

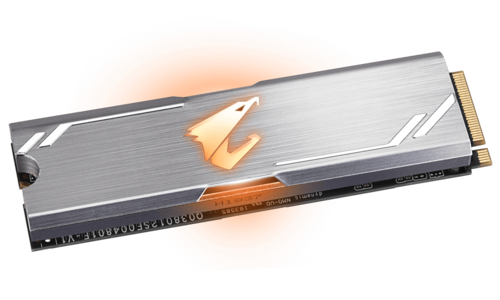

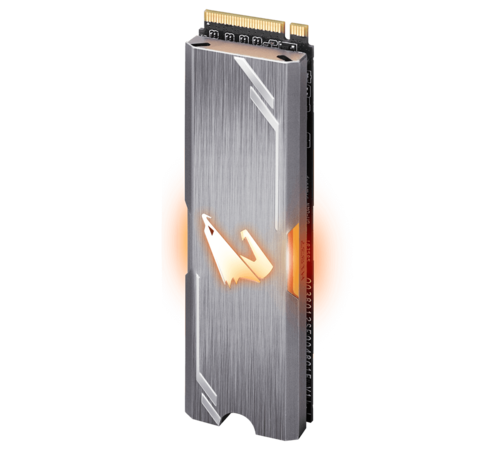

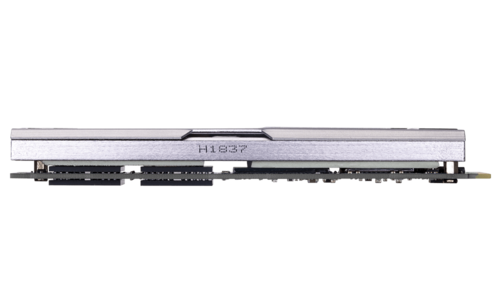

M.2 PCIe AORUS RGB

$60

Stock Status: In Stock

Manufacturer: GIGABYTE

  • M.2 PCIe AORUS RGB 256GB 60$
  • M.2 PCIe AORUS RGB 512GB 105$

  • Interface
    PCI-Express 3.0 x4, NVMe 1.3
  • Form Factor
    M.2 2280
  • NAND
    3D TLC NAND FLASH
  • External DDR Cache
    512MB
  • Sequential Read speed
    Up to 3480 MB/s
  • Sequential Write speed
    Up to 2000 MB/s
  • Random Read IOPS
    up to 360K
  • Random Write IOPS
    up to 440K
  • Mean time between failure (MTBF)
    1.8 million hours
  • Power Consumption (Active)
    Average : R : 5485mW ; W : 4085mW
  • Power Consumption (Idle)
    272mW
  • Temperature (Operating)
    0°C to 70°C
  • Temperature (Storage)
    -40°C to 85°C
  • Warranty
    • 1. Limited 5-years or 800TBW.
    • 2. Limited warranty based on 5 years or 800TBW, whichever comes first. (*TBW is evaluated by JEDEC workload standard. )
      *TBW (Terabyte Written): Terabytes Written is the total amount of data that can be written into a SSD before it is likely to fail.
    • 3. When the usage of an NVME SSD as indicated by the "Percentage Used" (SMART ID: 05) in SMART page of "GIGABYTE SSD toolbox" reaches 100 means out of warranty. (A new unused product will show the number of 0)
  • Note
    • • Test system configuration: configuration may vary by models, we will choose the latest platform for verification.
    • • Performance may vary based on SSD's firmware version and system hardware & configuration. Sequential performance measurements based on CrystalDiskMark and IOmeter 1.1.0.
    • • Speeds based on internal testing. Actual performance may vary.
    • • 1GB = 1 billion bytes. Actual useable capacity may vary.
