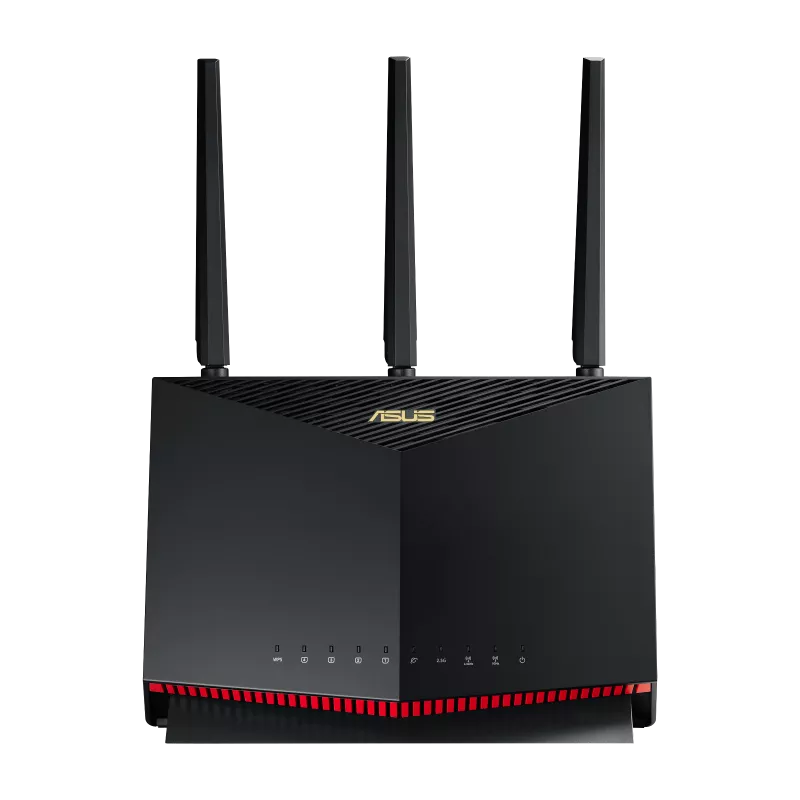

Asus RT-AX86U Pro

$295

Stock Status: In Stock

Manufacturer: ASUS

AX5700 Dual Band WiFi 6 Gaming Router, PS5 compatible, Mobile Game Mode, Enhanced Network Security with AiProtection Pro and Instant Guard Sharable Secure VPN, Upgraded Parental Controls, 2.5G Port, Gaming Port, Adaptive QoS, Port Forwarding
  • High-Efficiency WiFi 6 – Ultrafast WiFi 6 dual-band router boosts speed up to 5700 Mbps, with 160 MHz channels for better efficiency and throughput
  • Mobile Game Mode – Minimize lag and latency for mobile gaming with just a tap on the ASUS Router app
  • Expanded coverage – The exclusive ASUS RangeBoost Plus improves signal range and overall coverage
  • A Safer Browsing Experience – Block undesirable content with ASUS Safe Browsing, and protect your kids online by filtering explicit content from search results.
  • Enhanced Security Anywhere – Protect your home network with a free lifetime subscription to AiProtection Pro, powered by Trend Micro™. And when away from home, ASUS Instant Guard gives you a one-click sharable secure VPN.

Model
RT-AX86U Pro
Network Standard
IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
WiFi 4 (802.11n)
WiFi 5 (802.11ac)
WiFi 6 (802.11ax)
IPv4
IPv6
Product Segment
AX5700 ultimate AX performance : 861+4804 Mbps
WiFi Data Rate
802.11a : up to 54 Mbps
802.11b : up to 11 Mbps
802.11g : up to 54 Mbps
WiFi 4 (802.11n) : up to 450 Mbps
WiFi 4 (802.11n) (1024QAM) : up to 750 Mbps
WiFi 5 (802.11ac) (1024QAM) : up to 4333 Mbps
WiFi 6 (802.11ax) (2.4GHz) : up to 861 Mbps
WiFi 6 (802.11ax) (5GHz) : up to 4804 Mbps
Antenna
External antenna x 3
Internal PCB antenna x 1
Transmit / Receive
2.4GHz 3x3
5GHz 4x4
Processor
2.0GHz quad-core processor
Memory
256 MB Flash and 1 GB RAM
Boosts Speed
OFDMA (Orthogonal Frequency Division Multiple Access)
Beamforming: standard-based and universal
1024-QAM high data rate
20/40/80/160 MHz bandwidth
Operating Frequency
2.4 GHz / 5 GHz
Operating Mode
Wireless router mode,Access point mode,Media bridge mode,Repeater mode,AiMesh node mode

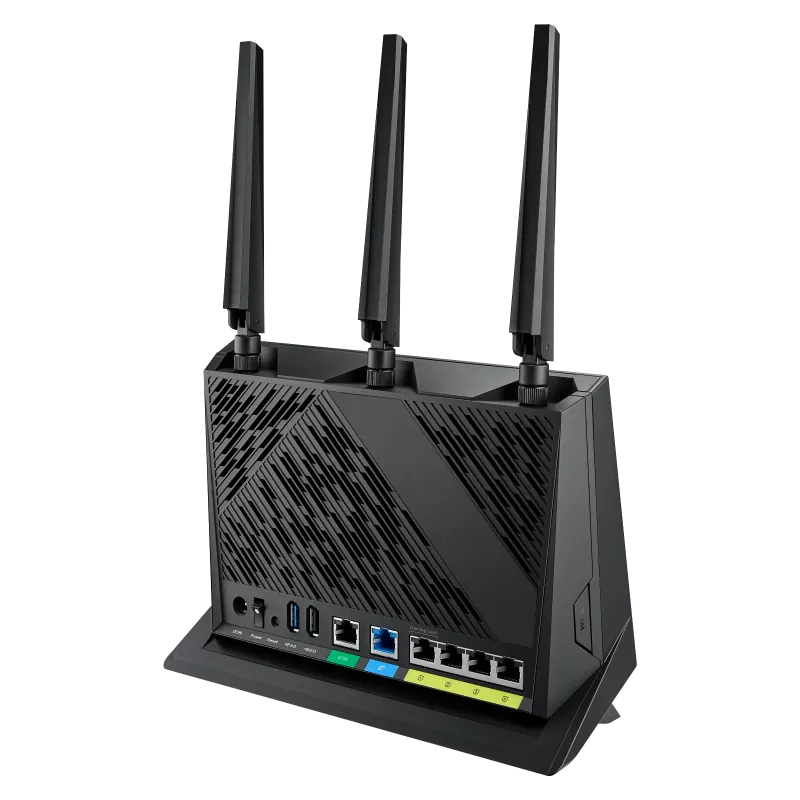

I/O Ports
RJ45 for 10/100/1000 BaseT for WAN x 1
RJ45 for 10/100/1000 BaseT for LAN x 4
Five (5) 10/100/1000 Mbps Gigabit Ethernet ports + one (1)
2.5G/1Gbps multi-Gig port (configurable)
-- LAN: 4xGbE (2x port aggregation LAN)
-- WAN: 1 GbE
-- WAN/LAN: 2.5G/1Gbps multi-Gig port (configurable)
-- Multi-Gig: Ability to aggregate two Gigabit LAN ports and two Gigabit WAN ports (configurable) concurrently.
USB 3.2 Gen1 x1, 2.0 x1
Buttons
WPS Button, Reset Button, Power Switch, LED on/off Button
LED Indicator
Power x 1
2.4GHz x 1
5GHz x 1
2.5G Port x 1
WAN x 1
LAN x 4
WPS x 1
Power Supply
19 V with max. 2.37 A current / 19.5 V with max. 2.31 A current or
12 V with max.3 A current / 19.5 V with max. 2.31 A current
Package Content
RT-AX86U Pro WiFi router
RJ-45 cable
Power adapter
Quick Start Guide
Warranty card
Product Weight (g)
814.5 g
Product Dimensions
242 x 100 x 325 (with antenna)
242 x 100 x 164 (without antenna)
AiMesh
AiMesh
• Primary AiMesh Router
• AiMesh Node
Game
Game Boost / Acceleration
Mobile Game Mode
Gear Accelerator
Parental Control
"Allow you to block access to unwanted websites and apps."
Safe Browsing
Customized Internet Schedule
• Maximum Parental Control Profile : 64
• Maximum Parental Control Content Cilter Rule : 64
Guest Network
"The Guest Network provides Internet connection for guests but restricts access to your local network."
• Maximum Guest Network Rule : 2.4GHz x3, 5GHz x3
Guest Network Connection Time Limit
Guest Network Encryption : Open system, WPA/WPA2/WPA3-Personal, WPS
Security
AiProtection
WPA3-Personal, WPA2-Personal, WPA-Personal, WPA-Enterprise , WPA2-Enterprise , WPS support
WPS
Let's Encrypt
DNS-over-TLS
SSH
Security Scan
Firewall
• Maximum Firewall Keyword Filter : 64
• Maximum Firewall Network Service Filter : 32
• Maximum Firewall URL Filter : 64
AiProtection
• Router Security Assessment
• Malicious Site Blocking
• Two-Way IPS
• Infected Device Prevention and Blocking
VPN
Instant Guard
VPN Client L2TP
VPN Client Open VPN
VPN Client PPTP
VPN Client WireGuard
VPN Server IPSec
VPN Server Open VPN
VPN Server PPTP
VPN Server WireGuard
VPN Fusion
Traffic Control
Adaptive QoS
• Bandwidth Monitor
• Bandwidth Limiter
-- Maximum Bandwidth Limiter Rule : 32
Traditional QoS
-- Maximum Traditional QoS Rule : 32
Traffic Monitor
• Real-time Traffic Monitor
• Wired Traffic Monitor
• Wireless Traffic Monitor
Traffic Analyzer
• Traffic Analysis Period : Daily, Weekly, Monthly
• Website History
WAN
Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP
Dual WAN
WAN Aggregation
3G / 4G LTE dongle
Port forwarding
• Maximum Port Forwarding Rule : 64
Port triggering
• Maximum Port Triggering Rule : 32
DMZ
DDNS
NAT Passthrough : PPTP Pass-Through, L2TP Pass-Through, IPSec Pass-Through, RTSP Pass-Through, H.323 Pass-Through, PPPoE relay
LAN
DHCP Server
IGMP Snooping
IPTV
LAN Link Aggregation
Manually Assign IP Address
• Maximum Manually Assign IP Address Rule : 64
Wake on LAN (WOL)
Wireless
MU-MIMO
UTF-8 SSID
WiFi MAC Address Filter
• Maximum MAC Filters : 64
Wireless Scheduler
Airtime Fairness
RADIUS Client
Universal Beamforming
Explicit Beamforming
USB application
File System : HFS+, NTFS, vFAT, ext2, ext3, ext4
Safely Remove Disk
AiCloud
Download Master
AiDisk
Media Server
Time Machine
Samba Server
FTP Server
Shared Folder Privileges
Administration
Configuration Backup and Restore
Diagnosis tools
Feedback System
System Log
New Device Connect Notification
Login Captcha
Connection Diagnosis
Auto Firmware Update
