ROG Rapture GT-AX11000

$519

Stock Status: In Stock

Manufacturer: ASUS

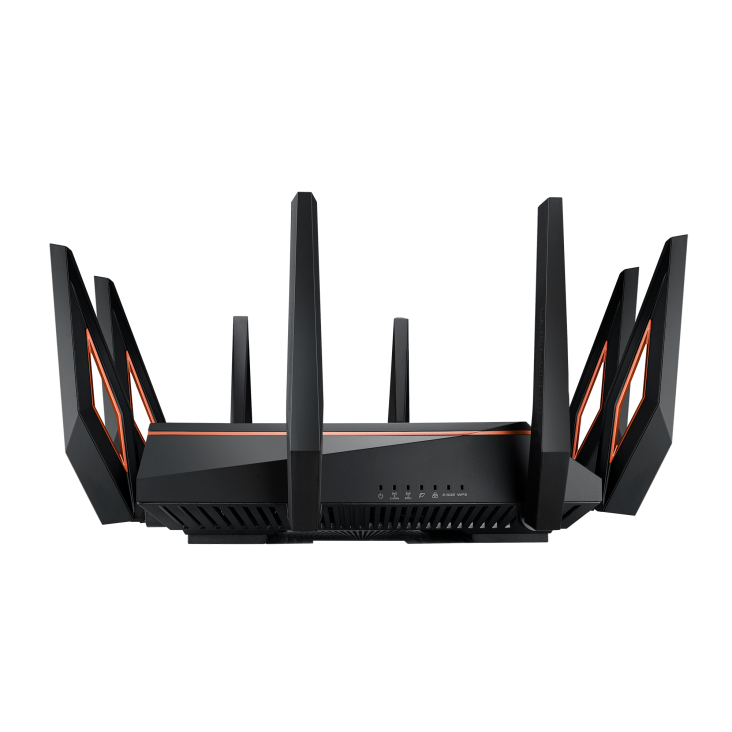

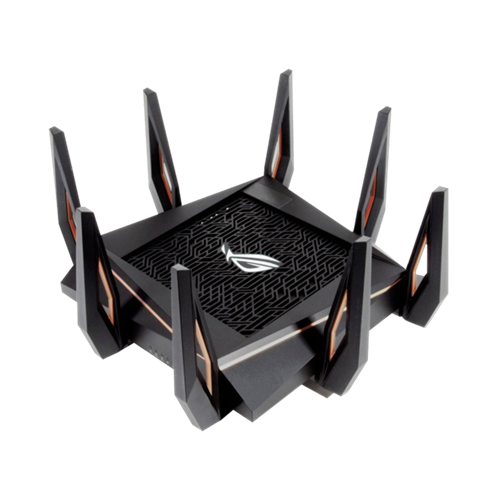

ROG Rapture GT-AX11000

AX11000 Tri-band WiFi 6 Gaming Router –World's first 10 Gigabit WiFi router with a quad-core CPU, PS5 compatible, 2.5G port, DFS band, wtfast, Adaptive QoS, AiMesh for mesh wifi system and free network security

Next-Gen WiFi Standard - 802.11ax WiFi standard for better efficiency, throughput and range.
Ultrafast WiFi Speed - 11000Mbps WiFi speed to handle even the busiest network with ease.
Triple-level Game Acceleration – Accelerate game traffic every step of the way - from device to game server.
Battle-ready-hardware – 1.8GHz quad-core CPU and 2.5GBase -T port for ultimate performance.
Front-line Network Security – Neutralize internet threats before they hit your network.

Description

ROG Rapture GT-AX11000

Model Name

GT-AX11000

Network Standard

WiFi 6 (802.11ax)

Backwards compatible with 802.11a/b/g/n/ac Wi-Fi

Product Segment

AX11000 ultimate AX performance

WiFi Data Rate

2.4GHz AX: 4x4 (Tx/Rx) 1024 QAM 20/40MHz, up to 1148Mbps

5G-1Hz AX: 4x4 (Tx/Rx) 1024 QAM 20/40/80/160MHz, up to 4804Mbps

5G-2Hz AX: 4x4 (Tx/Rx) 1024 QAM 20/40/80/160MHz, up to 4804Mbps

Antenna

External antenna x 8

Transmit / Receive

2.4GHz 4x4

5GHz-1 4x4

5GHz-2 4x4

Processor

1.8GHz quad-core processor

Memory

256MB NAND flash and 1GB DDR3 SDRAM

Boosts Speed

OFDMA (Orthogonal Frequency Division Multiple Access) Beamforming: standard-based and universal 1024-QAM high data rate 20/40/80/160 MHz bandwidth * The 160MHz bandwidth may be unavailable in the 5GHz band in some regions / countries due to regulatory restrictions.

Operating Frequency

Tri-band Wi-Fi

Operating Mode

Router(AiMesh router), AiMesh node, Access point, Repeater, Media bridge

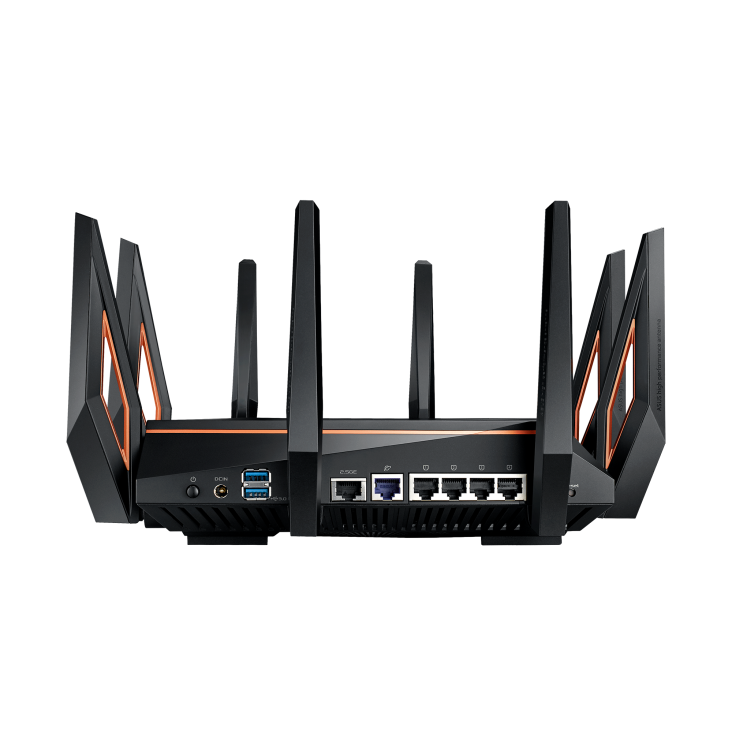

I/O Ports

RJ45 for Gigabits BaseT for WAN x 1, RJ45 for Gigabits BaseT for LAN x 4, Multi-Gig Ethernet port 2.5G/1G x1 USB 3.1 Gen 1 x 2

Buttons

WPS Button, Reset Button, Power Button, Wireless on/off Button, Boost Key

LED Indicator

Power x 1 Wi-Fi x 2 WAN x 1 LAN x 1 USB x 2 WPS x 1 2.5G Port x 1

Power Supply

AC Input : 110V~240V(50~60Hz) DC Output : 19 V with max. 3.42 A current

Package Content

GT-AX11000 Extreme Gaming Router RJ-45 Cable Power Adapter Quick Start Guide Warranty Card

Product Weight (g)

1500 g

Product Dimensions

240*240*70 mm

AiMesh

• Primary AiMesh Router

• AiMesh Node

Game

Game Boost / Acceleration

Game Radar

WTFast

ROG_First

OpenNAT (Game Profile)

Gaming Port

Parental Control

"Allow you to block access to unwanted websites and apps."

Parental Control Customized Internet Schedule

• Maximum Parental Control profile : 16

• Maximum Parental Control content filter rule : 16

Guest Network

"The Guest Network provides Internet connection for guests but restricts access to your local network."

• Maximum Guest Network Rule : 2.4GHz x3, 5GHz-1 x3, 5GHz2 x3

Guest Network Connection time limit

Guest Network Encryption : Open system, WPA/WPA2-Personal

Security

WiFi Encryption : Open system, WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise

WPS

Let's Encrypt

SSH

Firewall

• Maximum Firewall Keyword Filter : 32

• Maximum Firewall Network Service Filter : 32

• Maximum Firewall URL Filter : 64

AiProtection

AiProtection Pro

• Router Security Assessment

• Malicious Site Blocking

• Two-Way IPS

• Infected Device Prevention and Blocking

VPN

VPN Client L2TP

VPN Client Open VPN

VPN Client PPTP

VPN Server IPSec

VPN Server Open VPN

VPN Server PPTP

VPN Fusion

Traffic Control

Adaptive QoS

• Bandwidth Monitor

• Bandwidth Limiter

-- Maximum Bandwidth Limiter Rule : 32

Traditional QoS

-- Maximum Traditional QoS Rule : 32

Traffic Monitor

• Real-time Traffic Monitor

• Wired Traffic Monitor

• Wireless Traffic Monitor

Traffic Analyzer

• Traffic Analysis Period : Daily, Weekly, Monthly

• Website History

WAN

Internet Connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP

Dual WAN

WAN Aggregation

3G / 4G LTE Dongle

4G / 5G Auto Mobile Tethering

Port Forwarding

• Maximum Port Forwarding Rule : 64

Port Triggering

• Maximum Port Triggering Rule : 32

DMZ

DDNS

NAT Passthrough : PPTP, L2TP, IPSec, RTSP, H.323, SIP Passthrough,PPPoE relay

LAN

DHCP Server

IGMP Snooping

IPTV

LAN Link Aggregation

Manually Assign IP Address

• Maximum Manually Assign IP Address Rule : 64

Wake on LAN (WOL)

Wireless

MU-MIMO

UTF-8 SSID

WiFi MAC Address Filter

• Maximum MAC Filters : 64

Wireless Scheduler

Wi-Fi Radar

Airtime Fairness

RADIUS Client

Universal Beamforming

Explicit Beamforming

USB application

4G / 5G Auto Mobile Tethering

File System : HFS+, NTFS, vFAT, ext2, ext3, ext4

Safely Remove Disk

AiCloud

Download Master

AiDisk

Media Server

Time Machine

Samba Server

FTP Server

Shared Folder Privileges

User Interface

Operating system : ASUSWRT

Administration

Configuration Backup and Restore

Diagnosis Tools

Feedback System

System Log

Smart Home

Support IFTTT

Prices and specification and stock availability are subjected to change without prior notice please Contact Us to confirm. Thank you for choosing Gaming Store.
